 < Brick Linings and Tilings >

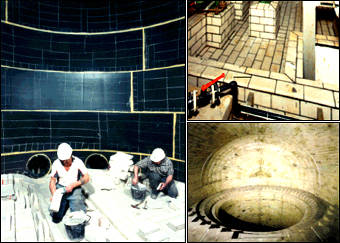

Acid brick is divided into Brick and Tile according to the thickness, Ceramic brick and Carbon brick according to the materials. (Picture1)

Normally, acid brick is applied on the flake coated or rubber lined surface. Acid brick linings avails of very good resistance to thermal, chemical and mechanical stress. (Picture2)

  1-1 Clients - Industries

       ->  process vessels in chemical industry

       ->  pulp and paper industry

       ->  steel industry

       ->  food industry

       ->  floor areas exposed to severe mechanical or chemical stresses

  1-2 Mortars For Brick Linings

       ->  Epoxy resin (EP)

       ->  Phenol formaldehyde resin (PF)

       ->  Furane resin (FU)

       ->  Vinyl ester resin (VE)

       ->  Unsaturated polyester resin (UP)

Brick Lined Pickling Tank

Brick Lined Bottom

Sulfuric acid plant

Codelco, Project Salvador
Lurgi, 1999

  1-3 Application Procedure

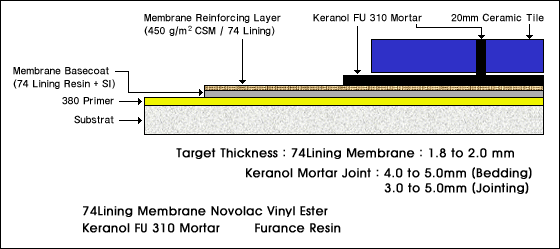

Typical Lining Construction

Ceilcote 74 Lining Membrane With

Keranol FU 310 Mortar and Tile Overlay
