< Rubber Lining Materials >
|
|
|
|
Advantages
of Rubber Linings Compared with Polymer Linings
|
|
-> Prefabricated
sheets
-> Constant
thickness
-> Standard
thickness 3 mm, 4 mm or 6 mm
-> High
permeation resistance
-> High
abrasion resistance
-> High
elasticity
|
|
Disadvantages
of Rubber Linings Compared With Polymer Linings
|
|
-> Limited
resistance to organic chemicals (organic solvents! )
-> Low
resistance to mechanical forces (cutting, impact, etc)
-> Lower
resistance to high temperatures
|
|
|
|
1-1
Primary Precured Rubber Lining Materials
|
|
|
|
Kerabutyl
V
|
good
chem. & therm. (100°C) resistance,
good mech.
properties,
FGD utilization phosphoric acid plants
|
|
Kerabutyl
BS
|
standard
grade wide utilization range in FGD
|
|
Kerabutyl
VC
|
good
resistance to hydrochloric acid
|
|
Kerabutyl
WBC
|
Oxidizing
media, mixed acids, pickling plant
|
|
Kerapalon
HE
|
resistant
to oxidizing media, hypochlorite solutions
|
|
|
|
|
1-2
Production of the Lining Material
|
|
-> Mixing
of raw materials
-> Production
of rubber sheets
|
|
|
|
|
|
|
|
|
|
1-3

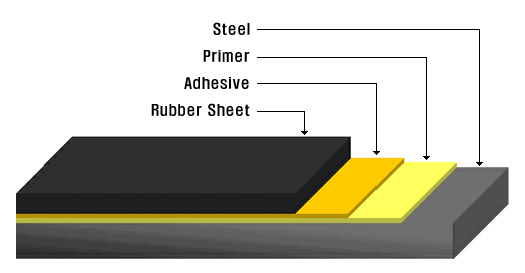

Rubber Lining on Steel Substrate
|
|
|
|
|
|
1-4
Rubber Lining on Steel Substrate
|
|
|
|
|
|
|
